Easy Sound Sensor Module Project: ESP32 Sound Activated LED + Buzzer Project

The “My Desk Came Alive” Moment

I was sitting at my desk, bored.

Music playing. Lights on. Nothing special.

Then I built this.

A sound sensor on an ESP32. Three LEDs. A buzzer.

I clapped my hands. 🔵 Blue LED glowed softly.

I spoke louder. 🟢 Green LED lit up.

I shouted (sorry, roommates). 🔴 Red LED flashed. The buzzer screamed.

My desk was reacting to sound. Sound sensor module project sounds amazing, right?

And the best part? It took me 20 minutes to build.

This is the perfect beginner project. Simple wiring. Easy code. And incredibly satisfying when your voice actually controls something.

What You’ll Build

A sound-activated light and alarm system that:

Sound Level	LED Color	Buzzer
🤫 Quiet / Silence	OFF	OFF
🗣️ Normal talking	🔵 Blue LED ON	OFF
📢 Loud voice	🟢 Green LED ON	OFF
🔔 Clapping / Shouting	🔴 Red LED ON	✅ ON for 1 second

The sensor measures sound intensity in real-time. Louder sound = more LEDs light up!

*(Diagram: Sound sensor → ESP32 reads value → LEDs + Buzzer react)*

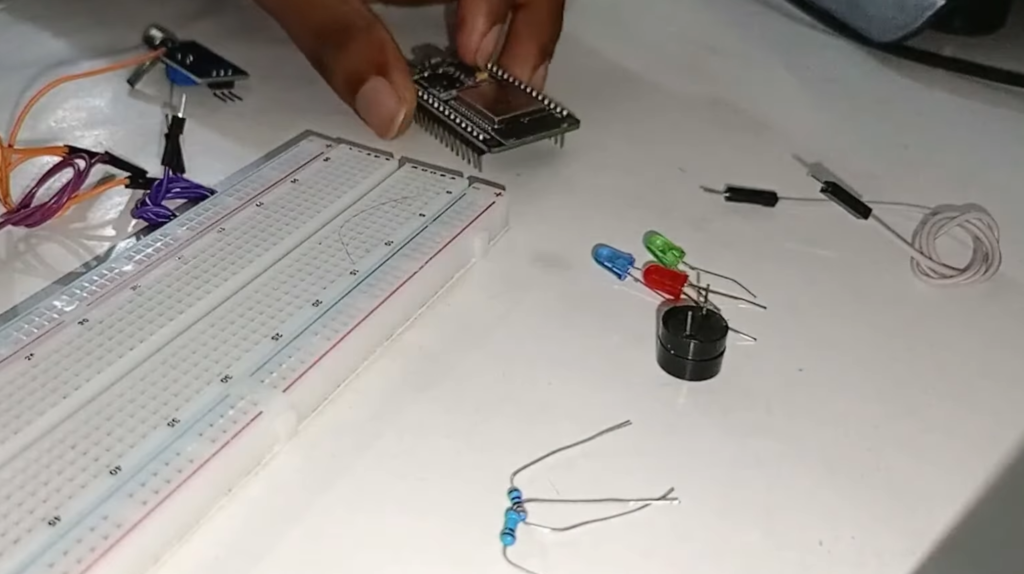

What You’ll Need

Hardware Components

Component	Specs / Notes	Price (USD)
ESP32 Development Board	Any 30-pin version	$5.00 – $7.00
Sound Sensor Module	LM393, 3.3V-5V, analog output	$2.00 – $4.00
Red LED	5mm, any brightness	$0.05 – $0.10
Green LED	5mm, any brightness	$0.05 – $0.10
Blue LED	5mm, any brightness	$0.05 – $0.10
220Ω Resistors (3x)	For LEDs (current limiting)	$0.05 – $0.10 each
Passive Buzzer	5V	$0.50 – $1.00
Breadboard	400 points	$1.00 – $2.00
Jumper Wires	Male-to-female & male-to-male	$1.00 – $2.00
USB Cable	For power and programming	$2.00 – $4.00

Total: ~$12.00 – $21.00 USD

Quick Buy Links

Component	Where to Find
ESP32 Development Board	AliExpress
Sound Sensor Module (LM393)	AliExpress
LED Assorted Kit	AliExpress
220Ω Resistors (Pack)	AliExpress
Passive Buzzer	AliExpress
Breadboard + Jumper Kit	AliExpress

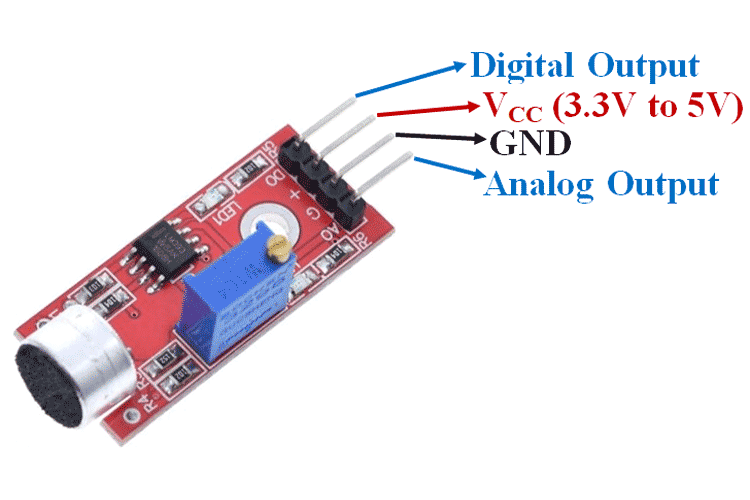

How the Sound Sensor Works

The LM393 sound sensor module has two outputs:

Output	What It Does	We’ll Use?
Analog (AO)	Outputs voltage proportional to loudness (0-3.3V)	✅ YES – for this project
Digital (DO)	Goes LOW when sound exceeds threshold	❌ NO – not needed

On the module, you’ll find:

Component	Function
Potentiometer	Adjusts sensitivity (turn with a small screwdriver)
Power LED	Lights up when module has power
Comparator LED	Lights up when digital output triggers

How it works:

Microphone picks up sound
Circuit converts sound waves to voltage
Louder sound = higher voltage on AO pin
ESP32 reads this voltage (0-4095 ADC value)
We set thresholds in code to trigger different LEDs

Read sensor values in my distance alarm project – This $5 Sensor Knows When You’re Too Close (ESP32 Distance Alarm System)

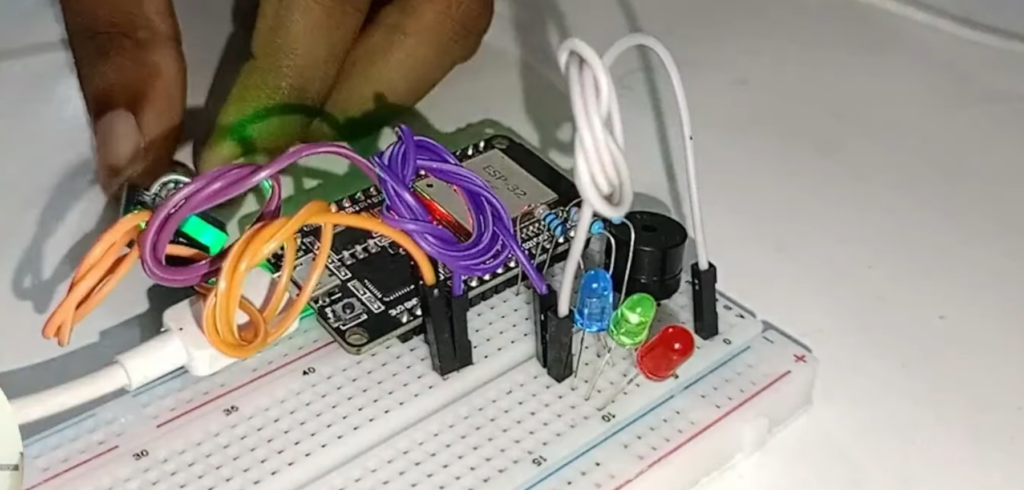

Wiring It Up

Sound Sensor

Sound Sensor Pin	ESP32 Pin	Notes
VCC	3.3V	Use 3.3V, not 5V!
GND	GND	Common ground
AO (Analog Out)	GPIO 34	ADC input pin

⚠️ Important: The sound sensor works at 3.3V. Connect to ESP32’s 3.3V pin, not 5V.

LEDs (through 220Ω resistors)

LED	ESP32 Pin	Polarity
Blue LED	GPIO 26	Anode (+) to pin, Cathode (-) to GND
Green LED	GPIO 27	Anode (+) to pin, Cathode (-) to GND
Red LED	GPIO 14	Anode (+) to pin, Cathode (-) to GND

Buzzer

Buzzer Pin	ESP32 Pin
Positive (+)	GPIO 12
Negative (-)	GND

Setting up ESP32 with VS Code guide – Robotics for Beginners: Learn ESP32 PlatformIO with VS Code | Blink LED Tutorial

The Code

Full code available on GitHub: [Link to your GitHub repository]

Core Logic Explained

➕➕

filename.cpp

// Read sound sensor value (0-4095)
int soundValue = analogRead(SOUND_SENSOR_PIN);

// Map to 0-100 range for easier understanding
int soundLevel = map(soundValue, 0, 4095, 0, 100);

// Decision logic based on sound level
if (soundLevel > 70) {
  // Very loud – red LED + buzzer
  digitalWrite(RED_LED, HIGH);
  digitalWrite(GREEN_LED, LOW);
  digitalWrite(BLUE_LED, LOW);
  digitalWrite(BUZZER_PIN, HIGH);
  delay(200);
  digitalWrite(BUZZER_PIN, LOW);
}
else if (soundLevel > 40) {
  // Medium loud – green LED
  digitalWrite(RED_LED, LOW);
  digitalWrite(GREEN_LED, HIGH);
  digitalWrite(BLUE_LED, LOW);
}
else if (soundLevel > 10) {
  // Quiet – blue LED
  digitalWrite(RED_LED, LOW);
  digitalWrite(GREEN_LED, LOW);
  digitalWrite(BLUE_LED, HIGH);
}
else {
  // Silence – all LEDs off
  digitalWrite(RED_LED, LOW);
  digitalWrite(GREEN_LED, LOW);
  digitalWrite(BLUE_LED, LOW);
}

Adjusting Sensitivity

The sound sensor has a potentiometer (blue box with a cross slot) on the back.

Turn	Effect
Clockwise	More sensitive (detects softer sounds)
Counter-clockwise	Less sensitive (only loud sounds trigger)

How to tune it:

Upload the code
Open Serial Monitor (115200 baud)
Make a sound (clap, talk, snap fingers)
Watch the Sound Level percentage
Adjust potentiometer until: whispers show ~10-20%, claps show ~80-90%

Testing Your Project

Action	Expected Result
Silence / no sound	All LEDs OFF
Whisper or soft talk	🔵 Blue LED ON
Normal conversation	🟢 Green LED ON
Clap or shout	🔴 Red LED ON + Buzzer beeps

Make It Your Own (Upgrades)

Upgrade	Difficulty	What You’ll Need
Add more LEDs	⭐ Easy	Extra LEDs + resistors
RGB LED instead	⭐ Easy	Single RGB LED (common cathode)
LED strip	⭐⭐ Medium	WS2812B addressable LED strip
Change colors	⭐ Easy	Modify `digitalWrite()` in code
Adjust thresholds	⭐ Easy	Change `QUIET_THRESHOLD`, `MEDIUM_THRESHOLD`, `LOUD_THRESHOLD`
Add OLED display	⭐⭐ Medium	0.96″ OLED – show sound level as bar graph
Battery power	⭐⭐ Medium	18650 battery + TP4056 charger
Record loudest sound	⭐⭐ Medium	Store peak value in variable

What You Learned

Concept	Why It Matters
Analog sensors	Read continuous values (not just ON/OFF)
ADC (Analog to Digital Converter)	Convert voltage (0-3.3V) to number (0-4095)
Threshold logic	`if-else` statements for decision making
`map()` function	Scale sensor values to meaningful ranges
Real-time reactivity	Sensors + outputs = interactive system

Check out my Pomodoro Timer project – The 25-Minute Focus Machine: How I Built an ESP32 Pomodoro Timer (And Stopped Wasting Time)

Troubleshooting

Problem	Likely Cause	Fix
No LEDs light up	Sound sensor not powered	Check VCC to 3.3V, GND to GND
LEDs always ON	Thresholds too low	Increase threshold values in code
Buzzer not working	Wrong polarity	Buzzer positive to GPIO, negative to GND
Serial Monitor shows 0 always	AO pin not connected	Check jumper from AO to GPIO 34
Sensor not sensitive	Potentiometer setting	Turn clockwise with small screwdriver
Random triggering	Electrical noise	Add 100µF capacitor across 3.3V and GND

Why This Project is Perfect for Beginners

Reason	Why
Few components	Only 6 components total
No soldering	All on breadboard
Simple code	Only `analogRead()` and `digitalWrite()`
Instant feedback	LEDs light up immediately
Fun to demo	Impress friends with voice control
Under $15	Fits any student budget

Real-World Applications

Use Case	How It Works
Sound-reactive art	LEDs change color with music
Noise indicator	Green = quiet, Red = too loud (library, classroom)
Clap switch	One clap turns light on, two claps off
Baby monitor	LED indicates crying level
Music visualizer	LEDs dance to beat (needs faster code)

🎥 Watch the Complete Video Tutorial

Prefer watching over reading? See the full step-by-step build process on YouTube:

📺 ESP32 Sound Activated LED + Buzzer Tutorial

👉 Don’t forget to Subscribe to Roborear on YouTube for more beginner-friendly robotics and electronics projects every week!

Your Turn

This project took me less than 30 minutes to build and test. It’s the perfect weekend project to understand how sensors work.

Now go build yours. Clap your hands. Watch the LEDs light up. Annoy your roommates with the buzzer.

That’s how you learn.

More advanced ESP32 projects like face recognition – From Face Recognition FAIL to Maximum Accuracy: How I Built an ESP32 CAM Face Recognition Attendance System (And You Can Too)

Frequently Asked Questions (FAQ)

1. Why does my sound sensor always show maximum value (4095) or always zero?

This is a common issue caused by incorrect wiring or power supply. First, check that you connected the sound sensor to 3.3V, not 5V. The LM393 module works at 3.3V and connecting to 5V can damage it or cause erratic readings. Second, open the Serial Monitor and observe the raw values. If it's stuck at 4095, your AO pin might be floating (not connected to GPIO 34). If it's stuck at 0, check GND connection. Third, the potentiometer on the module might be misadjusted. Use a small screwdriver to turn it slowly while watching the Serial Monitor. Clockwise increases sensitivity, counter-clockwise decreases it. Finally, some sound sensors have a "DO" (Digital Output) pin. Make sure you're using the AO (Analog Output) pin for this project. The DO pin only triggers at a fixed threshold and won't give you variable readings.

2. How do I make the LEDs react to music instead of clapping?

You need to adjust two things: sensitivity and thresholds. First, place the sound sensor near your speaker. The sensor has a small microphone – it needs to "hear" the music clearly. Second, open the Serial Monitor and play your music at the desired volume. Note the sound level percentage shown. For normal music, you might see values between 20-60%. Third, adjust the threshold values in the code: cpp const int QUIET_THRESHOLD = 15; // Lower than typical background const int MEDIUM_THRESHOLD = 35; // Normal music level const int LOUD_THRESHOLD = 60; // Loud beat drops If the sensor is too slow for fast music, reduce the delay(100) to delay(50) or delay(20) in the main loop. For even faster response, remove the delay entirely – the loop will run as fast as possible.

3. Can I use this project with an Arduino Uno instead of ESP32?

Yes, absolutely! The code works on Arduino Uno with just two small changes. First, change the pin numbers. Arduino Uno analog pins are A0, A1, etc.: cpp #define SOUND_SENSOR_PIN A0 // Instead of GPIO 34 #define BLUE_LED 9 #define GREEN_LED 10 #define RED_LED 11 #define BUZZER_PIN 12 Second, the analogRead() function on Arduino Uno returns values from 0 to 1023 (not 0-4095 like ESP32). The map() function already handles this automatically. The rest of the code works exactly the same. The Arduino Uno's buzzer output is also 5V (vs 3.3V on ESP32), so the buzzer will be slightly louder. Why use ESP32 then? The ESP32 gives you built-in Bluetooth and WiFi. You could later upgrade this project to send sound alerts to your phone or control the LEDs remotely – features the Arduino Uno doesn't have.
