The “It Moves!” Moment | Control Servo Motors
There’s something magical about making things move.
LEDs blink. Sensors read. But a servo motor? It physically moves. It turns exactly where you tell it to. It holds position. It obeys commands.
It’s the closest thing to bringing a machine to life.
I remember the first time I made a servo sweep back and forth. I sat there watching it like a kid with a new toy. Back and forth. Back and forth. For ten minutes.
My roommate thought I’d lost my mind.
But that was the moment I realized: I can build robots that actually move.
Today, you’ll learn how to control servo motors with ESP32 using a professional development environment: VS Code with PlatformIO. No outdated tutorials. No Arduino IDE limitations. Just real robotics coding.
What is a Servo Motor? Control Servo Motors?
Unlike regular DC motors that just spin continuously, a servo motor rotates to a specific angle and holds there.
| Feature | Regular DC Motor | Servo Motor |
|---|---|---|
| Rotation | Continuous | 0 to 180 degrees (usually) |
| Position control | ❌ No | ✅ Yes (you tell it exactly where to go) |
| Hold position | ❌ No | ✅ Yes (resists external force) |
| Speed control | Yes (PWM) | Yes (limited range) |
| Best for | Wheels, fans | Robot arms, steering, camera gimbals |
How a servo works:

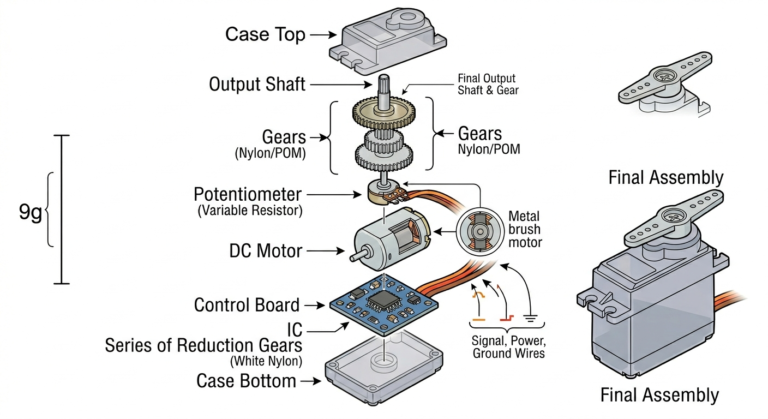

Inside the servo:
DC motor (spins fast)
Gear train (reduces speed, increases torque)
Potentiometer (measures current position)
Control circuit (compares target vs actual position)
You send a PWM signal (pulse width). The control circuit reads the potentiometer, calculates the difference, and drives the motor until the position matches.
What You’ll Need to Control Servo Motors
| Component | Specs / Notes | Price (USD) |
|---|---|---|
| ESP32 Development Board | Any 30-pin version | $5.00 – $7.00 |
| Servo Motor (SG90 or MG995) | SG90 (small), MG995 (larger, metal gears) | $3.00 – $8.00 |
| Jumper Wires | Female-to-female (servo to ESP32) | $2.00 – $4.00 |
| External Power Supply (for larger servos) | 5V, 2A+ (or 18650 battery) | $5.00 – $10.00 |
| Breadboard (optional) | 400 points | $1.00 – $2.00 |
Total (without external power): ~$11.00 – $21.00 USD

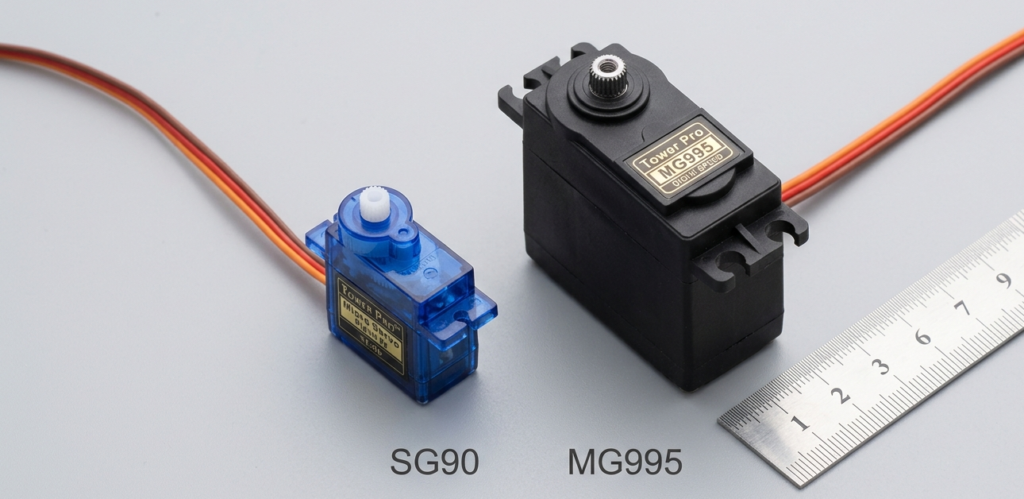

SG90 (small servo): $3-4, works directly from ESP32’s 5V pin for testing
MG995 (large servo): $6-8, requires external 5V power supply (ESP32 can’t provide enough current)
Quick Buy Links (Affiliate)
| Component | Where to Find |
|---|---|
| ESP32 Development Board | AliExpress |
| SG90 Servo (small) | AliExpress |
| MG995 Servo (large) | AliExpress |
| Potentiometer (10kΩ) | AliExpress |
| Jumper Wires (F-F) | AliExpress |
| External 5V Power Supply | AliExpress |

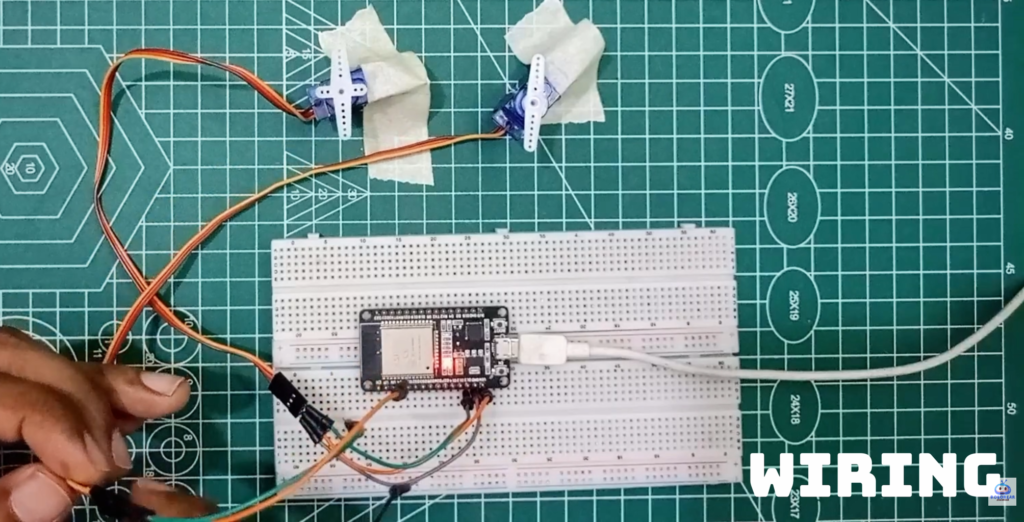

Wiring to Control Servo Motor with ESP32
To control servo motors, first you need to know the wiring. Servo motors have three wires:
| Wire Color | Function | Connect to ESP32 |
|---|---|---|
| Brown or Black | Ground (GND) | GND pin |
| Red | Power (VCC) | For testing: 5V / For large servos: External 5V |
| Orange or Yellow | Signal (PWM) | GPIO pin (e.g., GPIO 13) |
Power note: The ESP32’s 5V pin can power one small servo (SG90) for testing. For any real project or larger servo, use an external 5V power supply.
Setting Up VS Code + PlatformIO to Control Servo Motors
If you haven’t already:
Download Visual Studio Code from code.visualstudio.com
Install PlatformIO extension (click Extensions icon, search “PlatformIO IDE”)
Create a new project:
Click the PlatformIO icon (ant)
“New Project”
Name:
Servo_ControlBoard:
DOIT ESP32 DEVKIT V1Framework:
Arduino

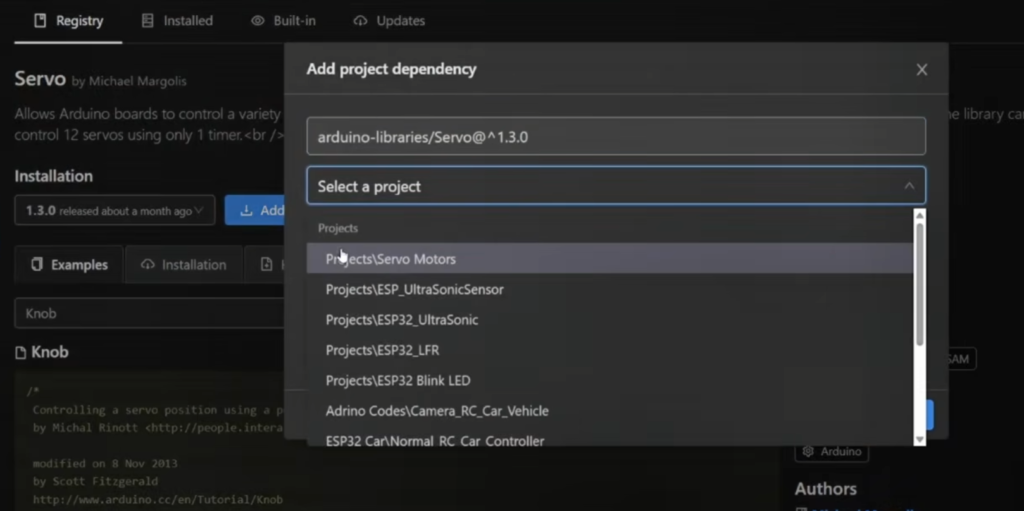

Install ESP32Servo library:
Click PlatformIO icon → Libraries
Search “ESP32Servo”
Click “Add to Project”
Setting up VS Code and PlatformIO to Control Servo Motors – Robotics for Beginners: Learn ESP32 PlatformIO with VS Code | Blink LED Tutorial
The Code to Control Servo Motors
Basic Sweep to Control Servo Motor (Test Your Servo)
// ============================================================
// ESP32 Servo Sweep - Test your servo
// Moves servo from 0 to 180 degrees and back
// ============================================================
#include <ESP32Servo.h>
// Create servo object
Servo myServo;
// Define the GPIO pin connected to the servo
#define SERVO_PIN 13
void setup() {
// Attach the servo to the pin
myServo.attach(SERVO_PIN);
// (Optional) Set minimum and maximum pulse widths (in microseconds)
// Standard servos use 500-2500µs
// myServo.setPeriodHertz(50); // Standard 50Hz servo
// myServo.attach(SERVO_PIN, 500, 2500);
}
void loop() {
// Sweep from 0 to 180 degrees
for (int angle = 0; angle <= 180; angle++) {
myServo.write(angle);
delay(15); // Wait for servo to reach position
}
// Sweep back from 180 to 0 degrees
for (int angle = 180; angle >= 0; angle--) {
myServo.write(angle);
delay(15);
}
}Control Servo Motor with Serial Monitor
// ============================================================

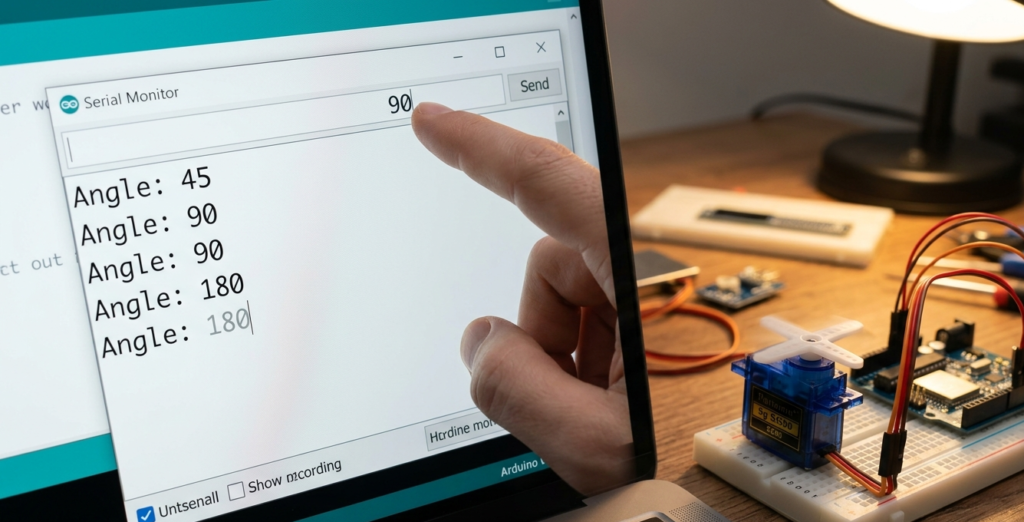

// ESP32 Servo Control via Serial Monitor
// Type a number (0-180) and press Enter
// ============================================================
#include <ESP32Servo.h>
Servo myServo;
#define SERVO_PIN 13
void setup() {
Serial.begin(115200);
myServo.attach(SERVO_PIN);
Serial.println("ESP32 Servo Controller");
Serial.println("Enter an angle between 0 and 180:");
}
void loop() {
if (Serial.available()) {
int angle = Serial.parseInt();
if (angle >= 0 && angle <= 180) {
myServo.write(angle);
Serial.print("Servo moved to: ");
Serial.print(angle);
Serial.println(" degrees");
} else {
Serial.println("Invalid angle. Please enter 0-180.");
}
// Clear the serial buffer
while (Serial.available()) Serial.read();
}
}
Control Servo Motor with a Potentiometer
Add a potentiometer to control servo motor manually:
Additional component: 10kΩ potentiometer
Wiring: Potentiometer middle pin → GPIO 34, outer pins → 3.3V and GND
// ============================================================
// ESP32 Servo Controlled by Potentiometer
// Turn the knob = servo moves
// ============================================================
#include <ESP32Servo.h>
Servo myServo;
#define SERVO_PIN 13
#define POT_PIN 34
void setup() {
myServo.attach(SERVO_PIN);
Serial.begin(115200);
}
void loop() {
// Read potentiometer (0-4095)
int potValue = analogRead(POT_PIN);
// Map to servo angle (0-180)
int angle = map(potValue, 0, 4095, 0, 180);
// Move servo
myServo.write(angle);
// Optional: print to Serial Monitor
Serial.print("Pot: ");
Serial.print(potValue);
Serial.print(" | Angle: ");
Serial.println(angle);
delay(15); // Smooth movement
}
Understanding the Code to Control Servo Motor
| Code | What It Does |
|---|---|
#include <ESP32Servo.h> | Includes the servo library (ESP32-compatible) |
Servo myServo; | Creates a servo object named myServo |
myServo.attach(SERVO_PIN); | Tells the ESP32 which pin the servo is connected to |
myServo.write(angle); | Moves the servo to the specified angle (0-180) |
myServo.writeMicroseconds(1500); | Alternative: set pulse width (500-2500µs) |
myServo.detach(); | Releases the pin (turns off signal) |
Important: The ESP32Servo library is different from the standard Arduino Servo library. The ESP32 has 16 hardware timers, so you can control up to 16 servos simultaneously without performance issues.
Powering Multiple Servos | Control Servo Motor
The ESP32’s 5V pin can only provide about 500mA. This is enough for:
| Servo Configuration | Can ESP32 Power It? |
|---|---|
| 1 SG90 (small servo) | ✅ Yes (for testing) |
| 2-3 SG90 (occasional movement) | ⚠️ Maybe (risk of brownout) |
| Any MG995 (large servo) | ❌ No (needs external power) |
| 4+ servos | ❌ No (needs external power) |
For multiple or large servos, use an external 5V power supply:
USB phone charger (5V, 2A) – good for 2-3 small servos
18650 battery + boost converter – portable option
5V power supply module – bench power for testing
External power wiring:
Connect external power positive to servo red wires
Connect external power negative to ESP32 GND (common ground!)
Servo signal wires go to ESP32 GPIO pins
Common Servo Problems to Control Servo Motor
| Problem | Likely Cause | Fix |
|---|---|---|
| Servo jitters or twitches | Power supply insufficient | Use external power |
| Servo doesn’t move at all | Wrong pin or missing attach() | Check myServo.attach(pin) |
| Servo moves only one direction | Signal wire loose | Check connection to GPIO pin |
| Servo buzzes but doesn’t turn | Mechanical obstruction or low power | Clear obstruction, check power |
| ESP32 resets when servo moves | Power brownout | External power for servo |
platformio.ini Configuration to Control Servo Motor
Your platformio.ini should look like this:
[env:doit_esp32_devkit_v1]
platform = espressif32
board = doit_esp32_devkit_v1
framework = arduino
monitor_speed = 115200
lib_deps =
madhephaestus/ESP32Servo@^2.0.3The lib_deps line tells PlatformIO to automatically download the ESP32Servo library.
